110BYGH350A-001 HYBRID STEPPING MOTOR

110BYGH350 HYBRID STEPPING MOTOR Technical Specifications General Specifications Step Accuracy Temperature Rise Insulation Resistance Ambient Temperature Dielectric Strength Max Radial Force Max Axial Force ± 5% 80 ℃ Maxl 100MΩ Min.500VC DC -20℃~+50℃ 500VAC 1 minute 330N (20mm from front flange) 100N Model Step Angle Lead Wire （°/Step）（NO.） Voltage Current Resistance Inductance Holding Torque （V）（A/Phase）（Ω/Phase）（mH/Phase）（N.m） 110BYGH350A-001 6.0 4.3 1.4 9.2 10 110BYG.

110BYGH350A-001 Datasheet (1.57 MB)

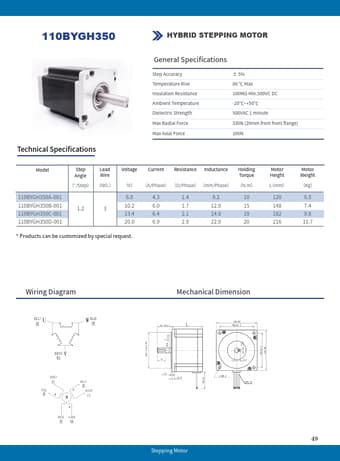

110BYGH350A-001 Datasheet Preview — Preview of 110BYGH350A-001 PDF

Datasheet Details

Part number:

110BYGH350A-001

Manufacturer:

HeTai

File Size:

1.57 MB

Description:

Hybrid stepping motor.
