110BYGH350D-001 HYBRID STEPPING MOTOR

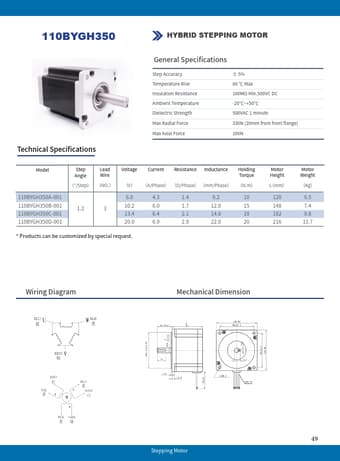

110BYGH350 HYBRID STEPPING MOTOR Technical Specifications General Specifications Step Accuracy Temperature Rise Insulation Resistance Ambient Temperature Dielectric Strength Max Radial Force Max Axial Force ± 5% 80 ℃ Maxl 100MΩ Min.500VC DC -20℃~+50℃ 500VAC 1 minute 330N (20mm from front flange) 100N Model Step Angle Lead Wire （°/Step）（NO.） Voltage Current Resistance Inductance Holding Torque （V）（A/Phase）（Ω/Phase）（mH/Phase）（N.m） 110BYGH350A-001 6.0 4.3 1.4 9.2 10 110BYG.

110BYGH350A-001-01HeTai.pdf

110BYGH350D-001 Datasheet Preview — This datasheet PDF includes multiple part numbers: 110BYGH350D-001, 110BYGH350A-001. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

110BYGH350D-001, 110BYGH350A-001

Manufacturer:

HeTai

File Size:

1.57 MB

Description:

Hybrid stepping motor.

Note:

This datasheet PDF includes multiple part numbers: 110BYGH350D-001, 110BYGH350A-001.
Please refer to the document for exact specifications by model.
