H4S120J040 1200V 40A SiC Schottky Barrier Diode

Description

H4S120J040 Part Number H4S120J040 Package TO-247-2L Marking H4S120J040 1200V/40A, SiC Schottky Barrier Diode H4S120J040 Datasheet Product Summary.

📥 Download Datasheet

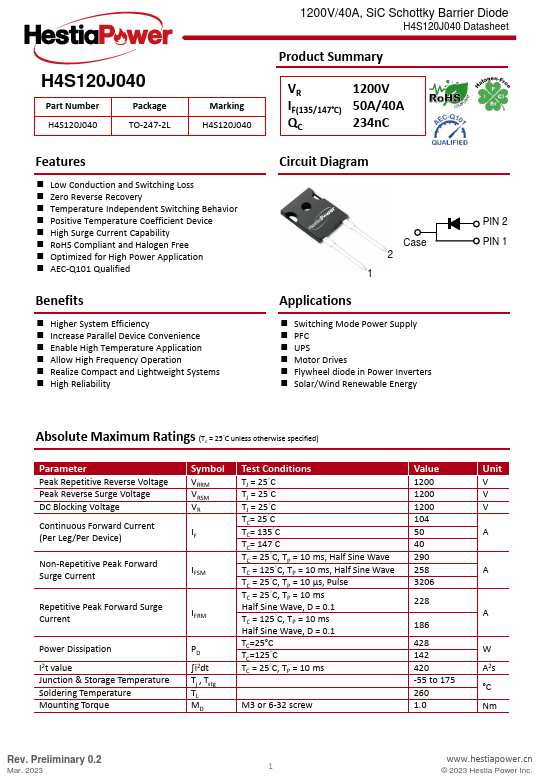

H4S120J040 Datasheet Preview — Preview of H4S120J040 PDF

Datasheet Specifications

Part number: H4S120J040
Manufacturer: Hestia Power
File Size: 423.94 KB
Datasheet: H4S120J040-HestiaPower.pdf
Description: 1200V 40A SiC Schottky Barrier Diode

Features

* Low Conduction and Switching Loss
* Zero Reverse Recovery
* Temperature Independent Switching Behavior
* Positive Temperature Coefficient Device
* High Surge Current Capability
* RoHS Compliant and Halogen Free

Applications

* Switching Mode Power Supply
* PFC
* UPS
* Motor Drives
* Flywheel diode in Power Inverters
* Solar/Wind Renewable Energy PIN 2 PIN 1 Absolute Maximum Ratings (Tc = 25°C unless otherwise specified) Parameter Peak Repetitive Reverse Voltage Peak Reverse Surge Voltage DC Bl
