ADA-4543, ADA-4543_Hewlett Silicon Bipolar Darlington Amplifier

📥 Download Datasheet  Datasheet Preview Page 1

Description

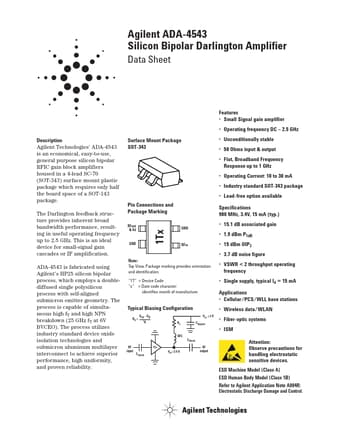

www.DataSheet4U.com Agilent ADA-4543 Silicon Bipolar Darlington Amplifier Data Sheet .
Agilent Technologies’ ADA-4543 is an economical, easy-to-use, general purpose silicon bipolar RFIC gain block amplifiers housed in a 4-lead SC-70 (SOT.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADA-4543, ADA-4543_Hewlett. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ADA-4543, ADA-4543_Hewlett
Manufacturer
Hewlett-Packard
File Size
137.14 KB
Datasheet
ADA-4543_Hewlett-Packard.pdf
Description
Silicon Bipolar Darlington Amplifier
Note
This datasheet PDF includes multiple part numbers: ADA-4543, ADA-4543_Hewlett.
Please refer to the document for exact specifications by model.

Features

* Small Signal gain amplifier
* Operating frequency DC

Applications

* Cellular/PCS/WLL base stations
* Wireless data/WLAN VCC = 5 V C bypass Note: Top View. Package marking provides orientation and identification. “1T” = Device Code “x” = Date code character identifies month of manufacture. Typical Biasing Configuration V -V Rc = cc d Id Rc
