ADA-4643, ADA-4643_Hewlett - Silicon Bipolar Darlington Amplifier

Hewlett-Packard

The ADA-4643 by Hewlett-Packard is a Silicon Bipolar Darlington Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

ADA-4643 Silicon Bipolar Darlington Amplifier by Hewlett-Packard - Datasheet Preview — Official preview page of the **ADA-4643** Silicon Bipolar Darlington Amplifier datasheet (Hewlett-Packard).

Datasheet Details

Part number	ADA-4643, ADA-4643_Hewlett
Manufacturer	Hewlett-Packard
File Size	136.62 KB
Description	Silicon Bipolar Darlington Amplifier
Datasheet	ADA-4643_Hewlett-Packard.pdf
Note	This datasheet PDF includes multiple part numbers: ADA-4643, ADA-4643_Hewlett. Please refer to the document for exact specifications by model.

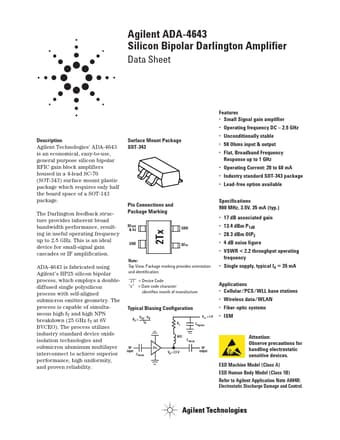

Additional preview pages of the ADA-4643 datasheet.

ADA-4643 Product details

Description

Agilent Technologies’ ADA-4643 is an economical, easy-to-use, general purpose silicon bipolar RFIC gain block amplifiers housed in a 4-lead SC-70 (SOT-343) surface mount plastic package which requires only half the board space of a SOT-143 package.

Features

Small Signal gain amplifier.
Operating frequency DC.
2.5 GHz.
Unconditionally stable.
50 Ohms input & output.
Flat, Broadband Frequency Response up to 1 GHz.
Operating Current: 20 to 60 mA.
Industry standard SOT-343 package.
Lead-free option available Specifications 900 MHz, 3.5V, 35 mA (typ. ).
17 dB associated gain.
13.4 dBm P1dB.
28.3 dBm OIP3.
4 dB noise figure.
VSWR.
