ADA-4743, ADA-4743_Hewlett Silicon Bipolar Darlington Amplifier

Hewlett-Packard

Description

Agilent ADA-4743 Silicon Bipolar Darlington Amplifier Data Sheet .
Agilent Technologies’ ADA-4743 is an economical, easy-to-use, general purpose silicon bipolar RFIC gain block amplifiers housed in a 4-lead SC-70 (SOT.

📥 Download Datasheet

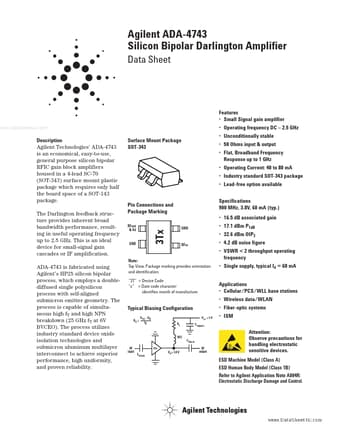

ADA-4743 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADA-4743, ADA-4743_Hewlett. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ADA-4743, ADA-4743_Hewlett
Manufacturer: Hewlett-Packard
File Size: 143.85 KB
Datasheet: ADA-4743_Hewlett-Packard.pdf
Description: Silicon Bipolar Darlington Amplifier
Note: This datasheet PDF includes multiple part numbers: ADA-4743, ADA-4743_Hewlett.
Please refer to the document for exact specifications by model.

Applications

* Cellular/PCS/WLL base stations
* Wireless data/WLAN
* Fiber-optic systems VCC = 5 V Pin Connections and Package Marking RFout & Vd GND GND 3Tx RFin Note: Top View. Package marking provides orientation and identification. “3T” = Device Code “x” = Date code character ide
