HCPL-314J Datasheet, Optocoupler, Hewlett-Packard

HCPL-314J Features

• Optocoupler
• 0.4 A Minimum Peak Output Current
• High Speed Response: 0.7 µs Max. Propagation Delay over Temp. Range
• Ultra High CMR: Min. 10 kV/µs at VCM = 1.5 kV

PDF File Details

Part number:

HCPL-314J

Manufacturer:

Hewlett-Packard

File Size:

225.25kb

Download:

📄 Datasheet

Description:

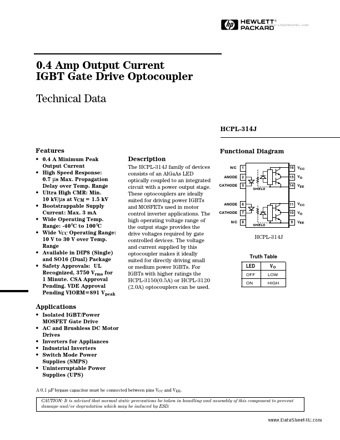

0.4 amp output current igbt gate drive optocoupler. The HCPL-314J family of devices consists of an AlGaAs LED optically coupled to an integrated circuit with a power output stage. These

HCPL-314J Application

• Applications The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and
