IAM-92516, IAM-92516_Hewlett High Linearity GaAs FET Mixer

Hewlett-Packard

IAM-92516 Description

Agilent IAM-92516 High Linearity GaAs FET Mixer Data Sheet .
Agilent Technologies’s IAM-92516 is a high linearity GaAs FET Mixer using 0.

IAM-92516 Features

* DC = 5V @ 26 mA (Typ. ) RF = 1.91 GHz, PinRF = -10 dBm; LO = 1.7 GHz, PinLO = -3 dBm; IF = 210 MHz unlesss otherwise specified

IAM-92516 Applications

* Frequency up/down converter for base station radio card, microwave link transceiver, and MMDS
* Modulation and demodulation for receiver and transmitter
* General purpose resistive FET mixer for other high linearity applications Attention: Observe precautions for handling

📥 Download Datasheet

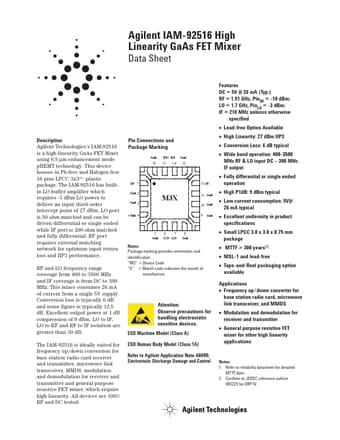

IAM-92516 Datasheet Preview — This datasheet PDF includes multiple part numbers: IAM-92516, IAM-92516_Hewlett. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: IAM-92516, IAM-92516_Hewlett
Manufacturer: Hewlett-Packard
File Size: 163.10 KB
Datasheet: IAM-92516_Hewlett-Packard.pdf
Description: High Linearity GaAs FET Mixer
Note: This datasheet PDF includes multiple part numbers: IAM-92516, IAM-92516_Hewlett.
Please refer to the document for exact specifications by model.
