HJ6718, HJ6718_Hi, NPN EPITAXIAL PLANAR TRANSISTOR

HI-SINCERITY MICROELECTRONICS CORP.Spec.No.: HE6830-A Issued Date : 1994.01.25 Revised Date : 2000.11.01 Page No.: 1/2 HJ6718 NPN EPITAXIAL PLAN.
The HJ6718 is designed for general purpose medium power amplifier and switching . High power: 1. High current: 1A Abs.

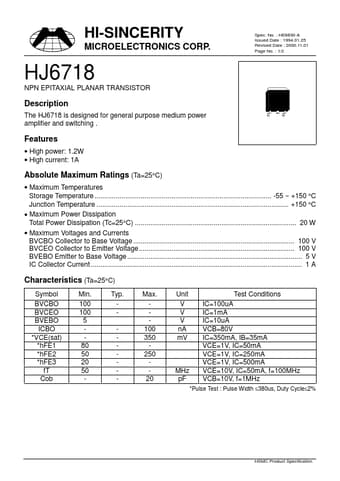

datasheet Preview Page 1 from Datasheet4u.com

HJ6718_Hi-SincerityMocroelectronics.pdf

HJ6718 Datasheet Preview — This datasheet PDF includes multiple part numbers: HJ6718, HJ6718_Hi. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HJ6718, HJ6718_Hi

Manufacturer:

Hi-Sincerity Mocroelectronics

File Size:

22.68 KB

Description:

NPN EPITAXIAL PLANAR TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: HJ6718, HJ6718_Hi.
Please refer to the document for exact specifications by model.

Features

* High power: 1.2W
* High current: 1A Absolute Maximum Ratings (Ta=25°C)
* Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C
* Maximum Power Dissipation Total Power Dissipation (Tc=25°C) 20 W
* Maximum Voltages and Current
