HMBTA06, HMBTA06_Hi - NPN SILICON TRANSISTOR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HMBTA06, HMBTA06_Hi. Please refer to the document for exact specifications by model.

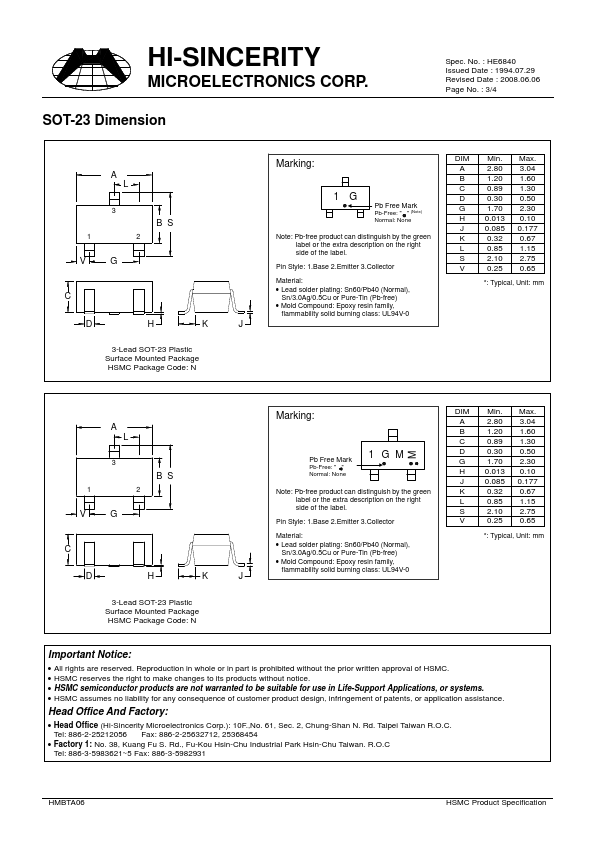

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number HMBTA06, HMBTA06_Hi
Manufacturer Hi-Sincerity Mocroelectronics
File Size 82.74 KB
Description NPN SILICON TRANSISTOR
Datasheet download datasheet HMBTA06_Hi-SincerityMocroelectronics.pdf
Note This datasheet PDF includes multiple part numbers: HMBTA06, HMBTA06_Hi.
Please refer to the document for exact specifications by model.

HMBTA06 Product details

Description

Amplifier Transistor Absolute Maximum Ratings SOT-23 Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C Maximum Maximum Power Dissipation Total Power Dissipation (TA=25°C) 225 mW Maximum Voltages and Currents (TA=25°C) VCBO Collector to Base Voltage 80 V VCEO Collector to Emitter Voltage
