HPN2222A - NPN EPITAXIAL PLANAR TRANSISTOR

This page provides the datasheet information for the HPN2222A, a member of the HPN2222A_Hi NPN EPITAXIAL PLANAR TRANSISTOR family.

Datasheet Summary

Description

The HPN2222A is designed for general purpose amplifier and high speed, medium-power switching applications.

Features

  • Low Collector Saturation Voltage.
  • High Speed Switching.
  • For Complementary Use with PNP Type HPN2907A TO-92 Absolute Maximum Ratings.
  • Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature 150 °C Maximum.
  • Maximum Power Dissipation Total Power Dissipation (Ta=25°C) 625 mW.
  • Maximum Voltages and Currents (Ta=25°C) VCBO Collector to Base Voltage 75 V VCEO Collector to Emitter Voltage 40 V VEBO Emitter to Base Voltage 6.

📥 Download Datasheet

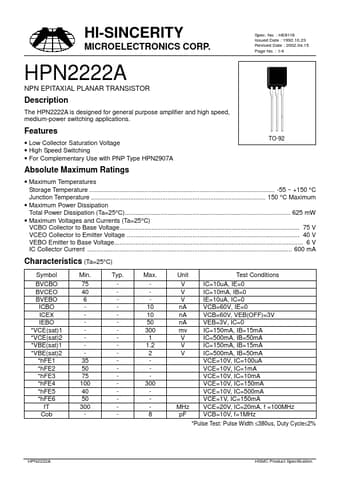

Datasheet preview – HPN2222A
