SFD2003T - 30A 20V N-CHANNEL MOSFET

Datasheet Summary

Description

The SFD2003T uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

It can be used in a wide variety of applications.

Features

30A,20V,RDS(on)(typ. )=8.8m@VGS=4.5V.
Excellent package for good heat dissipation.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
High density cell design for ultra low Rdson.
Special process technology for high ESD capability.
Exceptional on-resistance and maximum DC currentcapability SFD2003T.

Datasheet Details

Part number	SFD2003T
Manufacturer	HiSemicon
File Size	2.81 MB
Description	30A 20V N-CHANNEL MOSFET
Datasheet	SFD2003T Datasheet

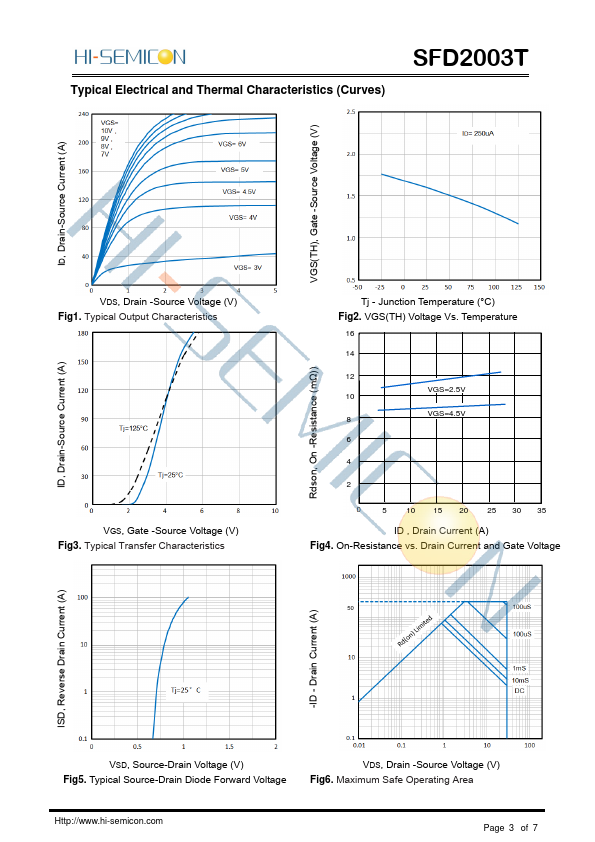

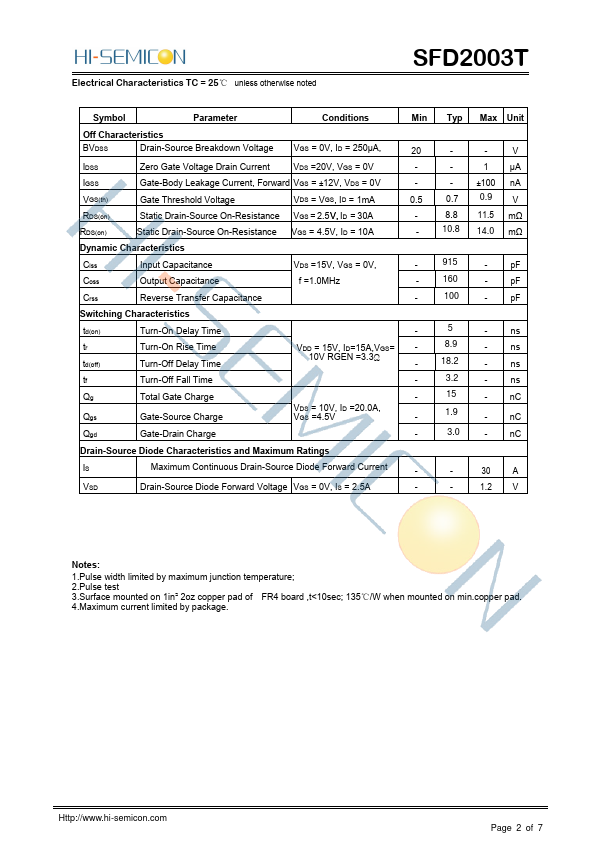

Additional preview pages of the SFD2003T datasheet.

📁 Similar Datasheet

SFD25 - Frequency Doubler (Tyco Electronics)

SFD25C - Frequency Doubler (Tyco Electronics)

SFD25E - Frequency Doubler (Tyco Electronics)

SFD25H - Frequency Doubler (MA-COM)

SFD25N06BT - Silicon N-Channel MOSFET (WINSEMI)

SFD26 - Frequency Doubler (Tyco Electronics)

SFD2CB4006F - Smart Force LED Driver (ERG)

SFD2EB3893F - Smart Force LED Driver (ERG)

SFD2EB4015F - Smart Force LED Driver (ERG)

SFD2KB4060F - Smart Force LED Driver (ERG)

Full PDF Text Transcription

Click to expand full text

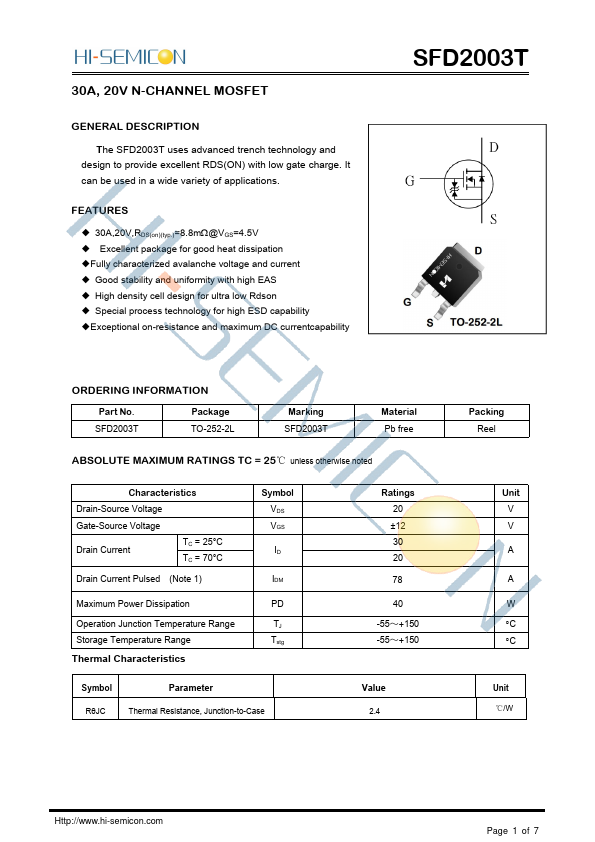

30A, 20V N-CHANNEL MOSFET GENERAL DESCRIPTION The SFD2003T uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications. FEATURES ◆ 30A,20V,RDS(on)(typ.)=8.8m@VGS=4.5V ◆ Excellent package for good heat dissipation ◆Fully characterized avalanche voltage and current ◆ Good stability and uniformity with high EAS ◆ High density cell design for ultra low Rdson ◆ Special process technology for high ESD capability ◆Exceptional on-resistance and maximum DC currentcapability SFD2003T ORDERING INFORMATION Part No.
