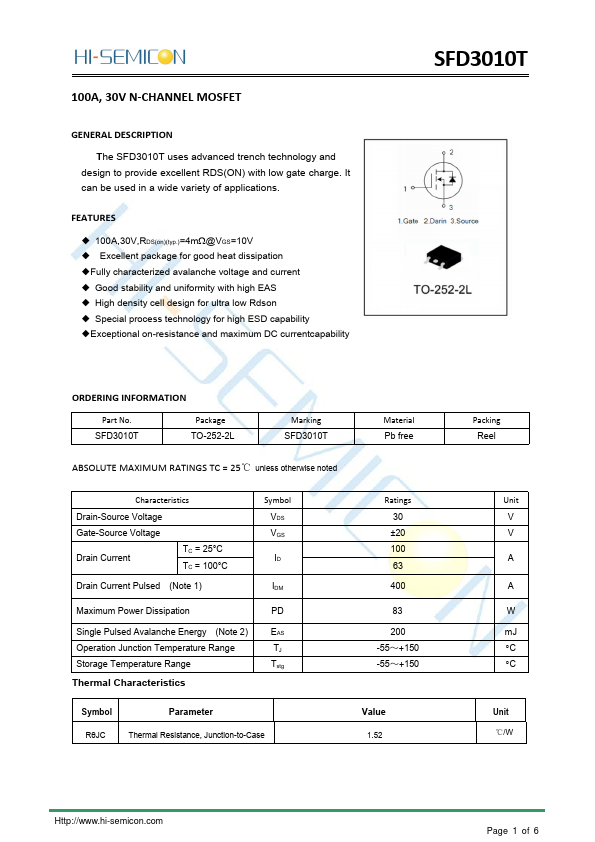

SFD3010T
DESCRIPTION
The SFD3010T uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications.
FEATURES
- 100A,30V,RDS(on)(typ.)=4m@VGS=10V
- Excellent package for good heat dissipation
- Fully characterized avalanche voltage and current
- Good stability and uniformity with high EAS
- High density cell design for ultra low Rdson
- Special process technology for high ESD capability
- Exceptional on-resistance and maximum DC currentcapability
ORDERING INFORMATION
Part No. SFD3010T
Package TO-252-2L
Marking SFD3010T
Material Pb free
ABSOLUTE MAXIMUM RATINGS TC = 25℃ unless otherwise noted
Characteristics
Drain-Source Voltage
Gate-Source Voltage
Drain Current
TC = 25°C TC = 100°C
Drain Current Pulsed (Note 1)
Symbol VDS VGS ID
Maximum Power Dissipation
Single Pulsed Avalanche Energy (Note 2)
Operation Junction Temperature Range
Storage Temperature Range
Tstg
Thermal...
