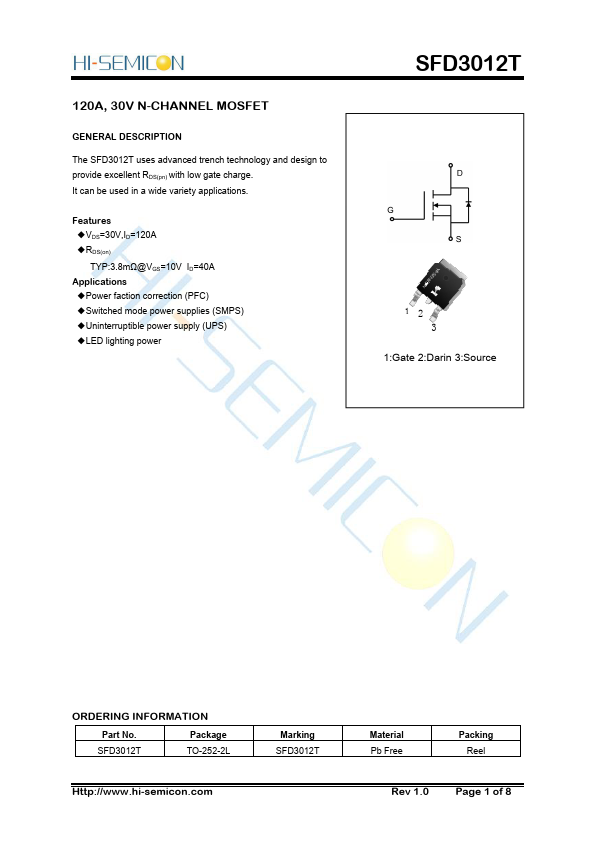

DESCRIPTION The SFD3012T uses advanced trench technology and design to provide excellent RDS(pn) with low gate charge. It can be used in a wide variety applications. Features - VDS=30V,ID=120A - RDS(on) TYP:3.8mΩ@VGS=10V ID=40A Applications - Power faction correction (PFC) - Switched mode power supplies (SMPS) - Uninterruptible power supply (UPS) - LED lighting power 12 33 1:Gate 2:Darin 3:Source ORDERING INFORMATION Part No. SFD3012T Package TO-252-2L Http://.hi-semicon. Marking SFD3012T Material Pb Free Packing Reel Rev 1.0 Page 1 of 8 ABSOLUTE MAXIMUM RATINGS (TJ=25C unless otherwise noted) Characteristics Symbol Ratings Drain-Source Voltage Gate-Source Voltage ±20 TC = 25C Drain Current TC = 100C Drain Current Pulsed(Note 1) Power Dissipation(TC=25C) -Derate above...
