Datasheet Specifications
- Part number
- SFQ0320T4
- Manufacturer
- HiSemicon
- File Size
- 0.98 MB
- Datasheet
- SFQ0320T4-HiSemicon.pdf
- Description
- N-Ch and P-Ch Power MOSFET

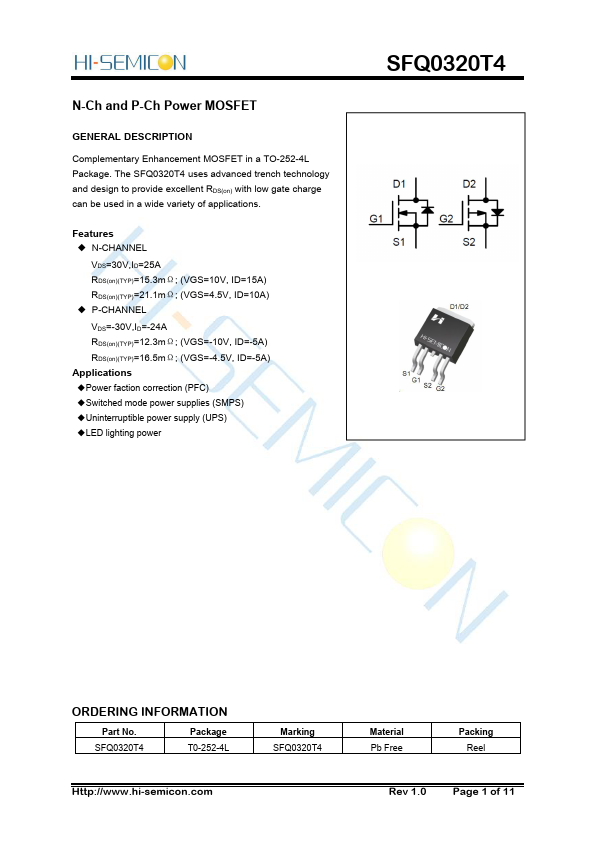

Description
N-Ch and P-Ch Power MOSFET GENERAL .
Features
* N-CHANNEL VDS=30V,ID=25A RDS(on)(TYP)=15.3mΩ; (VGS=10V, ID=15A) RDS(on)(TYP)=21.1mΩ; (VGS=4.5V, ID=10A)SFQ0320T4 Distributors
