GBP306, GBP3005 Plastic-Encapsulate Bridge Rectifier

Description

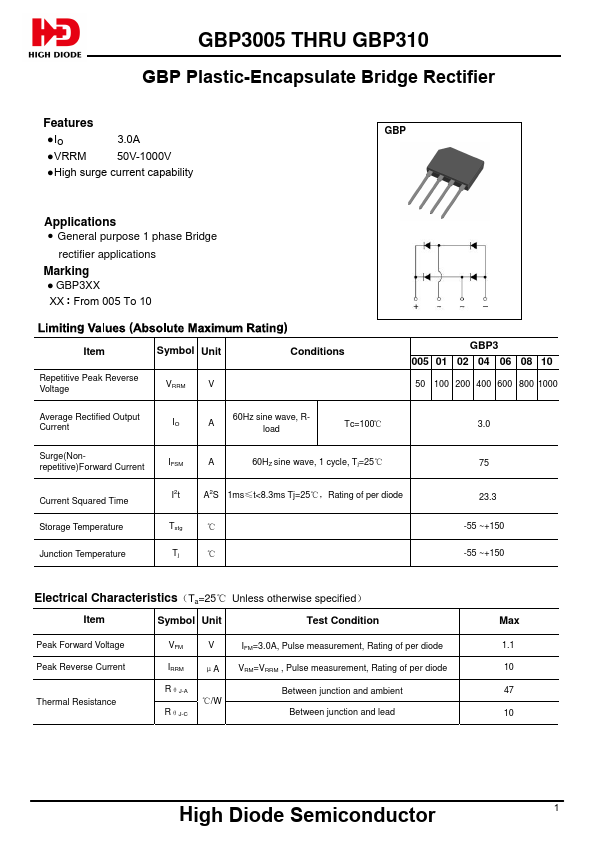

GBP3005 THRU GBP310 GBP Plastic-Encapsulate Bridge Rectifier .

📥 Download Datasheet

GBP306 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBP306, GBP3005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GBP306, GBP3005
Manufacturer: High Diode
File Size: 1.41 MB
Datasheet: GBP3005-HighDiode.pdf
Description: Plastic-Encapsulate Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: GBP306, GBP3005.
Please refer to the document for exact specifications by model.

Features

* Io 3.0A GBP
* VRRM 50V-1000V

Applications

* General purpose 1 phase Bridge rectifier applications Marking
* GBP3XX XX : From 005 To 10 Item Symbol Unit Repetitive Peak Reverse Voltage VRRM V Conditions GBP3 005 01 02 04 06 08 10 50 100 200 400 600 800 1000 Average Rectified Output Current IO A 60Hz sine wave, Rload Tc=10
