HX8660-A - 240 Channel TFT Gate Driver

HX8660-A Description

( DOC No.HX8660-A-DS ) HX8660-A 240 Channel TFT Gate Driver Version 01 March, 2006 HX8660-A 240 Channel TFT Gate Driver Version 01 1.General Descr.
March, 2006 The HX8660-A is a 240 channel outputs gate driver used for driving the gate electrode of TFT LCD panel.

HX8660-A Features

* 2-level output gate driver for TFT LCD panel 240 channel outputs + 2 pins fixed to VEE Maximum +40V output driving voltage Bi-directional data shift capability 200KHz maximum operation frequency 2.7V to 5.5V power supply voltage range High voltage CMOS process technology COG package Possible applic

HX8660-A Applications

* Panel type VGA UXGA Resolution 640 × 480 1600 × 1200 1920 × 1440 Piece per panel 2 5 6 Himax Confidential This information contained herein is the exclusive property of Himax and shall not be distributed, reproduced, or disclosed in w

📥 Download Datasheet

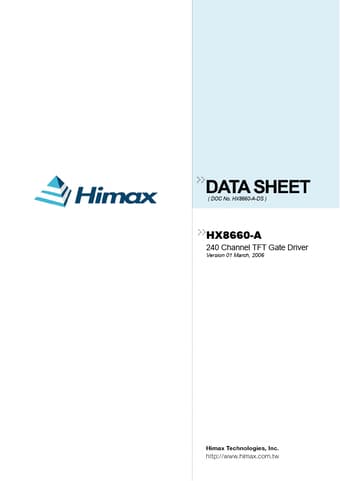

Preview of HX8660-A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HX8660-A
Manufacturer
Himax
File Size
574.15 KB
Datasheet
HX8660-A-Himax.pdf
Description
240 Channel TFT Gate Driver
