2SA872 Datasheet - Hitachi Semiconductor

2SA872 Silicon PNP Epitaxial Transistor

2SA872, 2SA872A Silicon PNP Epitaxial Application Low frequency low noise amplifier Complementary pair with 2SC1775/A Outline TO-92 (1) 1. Emitter 2. Collector 3. Base 3 2 1 2SA872, 2SA872A Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg 2SA872 90 90 5 .

2SA872_HitachiSemiconductor.pdf

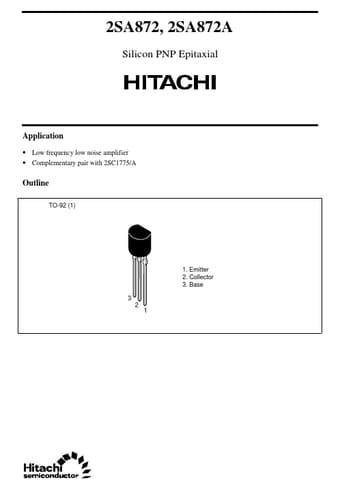

Preview of 2SA872 PDF
2SA872 Datasheet Preview Page 2 2SA872 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA872

Manufacturer:

Hitachi Semiconductor

File Size:

37.30 KB

Description:

Silicon pnp epitaxial transistor.
