2SA808 - Silicon POwer Transistors

Datasheet Summary

Description

With TO-3 package Wide area of safe operation Complement to type 2SC1619 APPLICATIONS For power amplifier and general purpose applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SY

📥 Download Datasheet

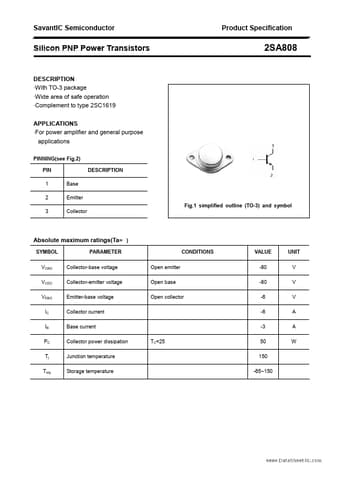

Datasheet preview – 2SA808

Datasheet Details

Part number 2SA808
Manufacturer SavantIC
File Size 145.22 KB
Description Silicon POwer Transistors
Datasheet download datasheet 2SA808 Datasheet
Additional preview pages of the 2SA808 datasheet.

📁 Similar Datasheet

  • 2SA808 - PNP Transistor (INCHANGE)
  • 2SA807 - POWER TRANSISTOR (Inchange Semiconductor)
  • 2SA811A - PNP SILICON TRANSISTOR (NEC)
  • 2SA812 - PNP Transistor (NEC)
  • 2SA812 - PNP Transistor (WEITRON)
  • 2SA812 - SOT-23 BIPOLAR TRANSISTORS (Rectron)
  • 2SA812 - PNP Transistor (HOTTECH)
  • 2SA812 - PNP Transistors (Kexin)
  • 2SA812 - PNP Transistor (JCET)
  • 2SA812 - PNP Transistor (DC COMPONENTS)
Other Datasheets by SavantIC
  • 2SA807 - Silicon POwer Transistors
  • 2SA814 - (2SA814 / 2SA815) Silicon POwer Transistors
  • 2SA815 - (2SA814 / 2SA815) Silicon POwer Transistors
  • 2SA837 - Silicon POwer Transistors
  • 2SA839 - Silicon POwer Transistors
  • 2SA877 - (2SA877 / 2SA878) Silicon POwer Transistors
  • 2SA878 - (2SA877 / 2SA878) Silicon POwer Transistors
  • 2SA882 - Silicon POwer Transistors

Full PDF Text Transcription

Click to expand full text
SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon PNP Power Transistors 2SA808 DESCRIPTION ·With TO-3 package ·Wide area of safe operation ·Complement to type 2SC1619 APPLICATIONS ·For power amplifier and general purpose applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25 Open emitter Open base Open collector CONDITIONS VALUE -80 -80 -6 -6 -3 50 150 -65~150 UNIT V V V A A W SavantIC Semiconductor www.DataSheet4U.
