2SA878, 2SA877 - (2SA877 / 2SA878) Silicon POwer Transistors

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SA878, 2SA877. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SA878, 2SA877
Manufacturer SavantIC
File Size 137.28 KB
Description (2SA877 / 2SA878) Silicon POwer Transistors
Datasheet download datasheet 2SA877_SavantIC.pdf
Note This datasheet PDF includes multiple part numbers: 2SA878, 2SA877.
Please refer to the document for exact specifications by model.

2SA878 Product details

Description

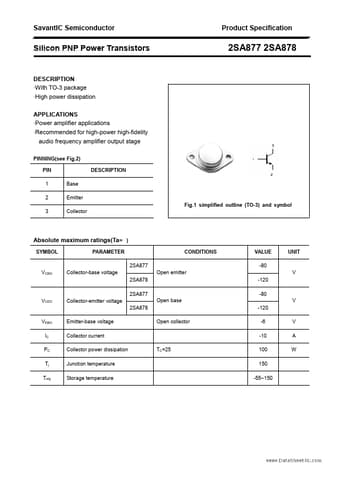

With TO-3 package High power dissipation APPLICATIONS Power amplifier applications Recommended for high-power high-fidelity audio frequency amplifier output stage PINNING(see Fig.2) PIN 1 2 3 Base Emitter Fig.1 simplified outline (TO-3) and symbol Collector DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL PARAMETER 2SA877 VCBO Collector-base voltage 2SA878 2SA877 VCEO Collector-emitter voltage 2SA878 VEBO IC PC Tj Tstg Emitter-base voltage Collector current Collector power
