2SC1344 Datasheet - Hitachi Semiconductor

2SC1344 Silicon NPN Transistor

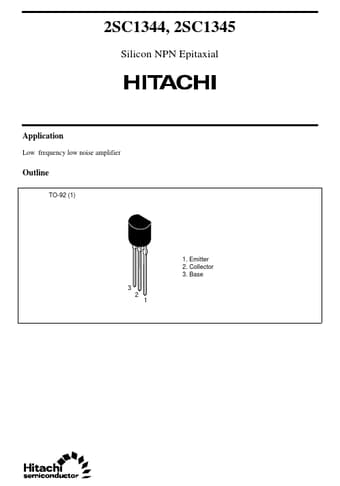

2SC1344, 2SC1345 Silicon NPN Epitaxial Application Low frequency low noise amplifier Outline TO-92 (1) 1. Emitter 2. Collector 3. Base 3 2 1 2SC1344, 2SC1345 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg 2SC1344 30 30 5 100 200 150 55 to +150 2SC1345 55 50 5 100 200 150 55 to +15.

2SC1344_HitachiSemiconductor.pdf
