2SC1345K Datasheet - Hitachi Semiconductor

2SC1345K_HitachiSemiconductor.pdf

Preview of 2SC1345K PDF
2SC1345K Datasheet Preview Page 2 2SC1345K Datasheet Preview Page 3

Datasheet Details

Part number:

2SC1345K

Manufacturer:

Hitachi Semiconductor

File Size:

43.04 KB

Description:

Silicon npn transistor.

2SC1345K, Silicon NPN Transistor

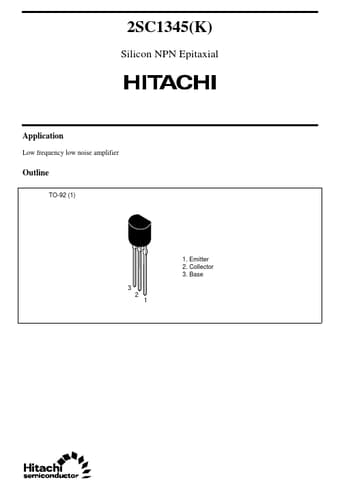

2SC1345(K) Silicon NPN Epitaxial Application Low frequency low noise amplifier Outline TO-92 (1) 1.

Emitter 2.

Collector 3.

Base 3 2 1 2SC1345 (K) Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 55 50 5 100 200 150 55 to +150 Unit V V V mA mW °C °C Electrical Characteristics (Ta =
