2SC1881K - Silicon NPN Transistor

📥 Download Datasheet

Datasheet preview – 2SC1881K

Datasheet Details

Part number 2SC1881K
Manufacturer Hitachi Semiconductor
File Size 35.77 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC1881K Datasheet
Additional preview pages of the 2SC1881K datasheet.

📁 Similar Datasheet

  • 2SC1881K - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SC1881 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1880 - NPN Transistor (INCHANGE)
  • 2SC1880 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1803 - NPN Silicon Transistor (ETC)
  • 2SC1809 - RF Amplifier / Epitaxial Planar NPN Silicon Transistor (Rohm)
  • 2SC1809 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC1810 - NPN Transistor (ETC)
  • 2SC1812 - NPN EPITAXIAL SILICON TRANSISTOR (WEJ)
  • 2SC1815 - Silicon NPN Transistor (Toshiba Semiconductor)
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text

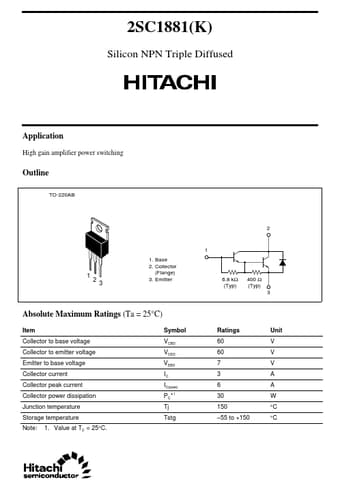

2SC1881(K) Silicon NPN Triple Diffused Application High gain amplifier power switching Outline TO-220AB 2 1 1. Base 2. Collector (Flange) 3. Emitter 1 2 3 6.8 kΩ (Typ) 400 Ω (Typ) 3 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Symbol VCBO VCEO VEBO IC I C(peak) PC * Tj Tstg 1 Ratings 60 60 7 3 6 30 150 –55 to +150 Unit V V V A A W °C °C 2SC1881(K) Electrical Characteristics (Ta = 25°C) Item Symbol Min 60 7 — — 1000 500 Collector to emitter saturation voltage Turn on time Turn off time Note: 1. Pulse test. VCE(sat) t on t off — — — Typ — — — — — — — 1 5 Max — — 0.2 0.
