2SC3365 Datasheet - Hitachi Semiconductor

2SC3365 Silicon NPN Transistor

2SC3365 Silicon NPN Triple Diffused Application High voltage, high speed and high power switching Outline TO-3P 1. Base 2. Collector (Flange) 3. Emitter 1 2 3 2SC3365 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Base current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C Symbol VCBO VCEO VEBO IC I C(peak) IB PC Tj Tstg.

2SC3365_HitachiSemiconductor.pdf

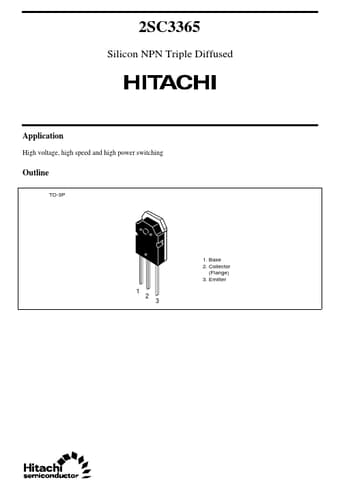

Preview of 2SC3365 PDF
2SC3365 Datasheet Preview Page 2 2SC3365 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC3365

Manufacturer:

Hitachi Semiconductor

File Size:

41.67 KB

Description:

Silicon npn transistor.
