2SC460 NPN TRANSISTOR

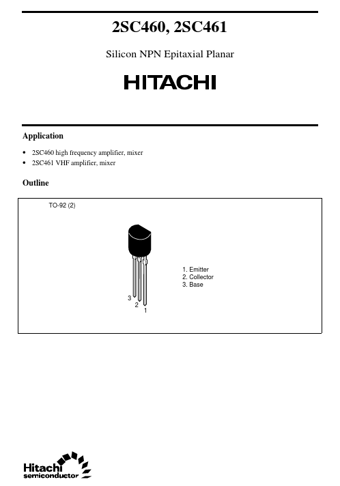

2SC460, 2SC461 Silicon NPN Epitaxial Planar Application 2SC460 high frequency amplifier, mixer 2SC461 VHF amplifier, mixer Outline TO-92 (2) 1. Emitter 2. Collector 3. Base 3 2 1 2SC460, 2SC461 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg 2SC460 30 30 5 100 200 150 55.

2SC460 Features

* and employ systemic measures such as failsafes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other consequential damage due to operation of the Hitachi product. 5. This product is not designed to be radiation resistant. 6. No one is permitted to reproduce
