2SC4913 - NPN TRANSISTOR

2SC4913 Description

2SC4913 Silicon NPN Triple Diffused Application High voltage amplifier .

2SC4913 Features

* High breakdown voltage
* V(BR)CEO = 2000 V min Outline TO-220AB 1 2 3 1. Base 2. Collector (Flange) 3. Emitter 2SC4913 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak curr

📥 Download Datasheet

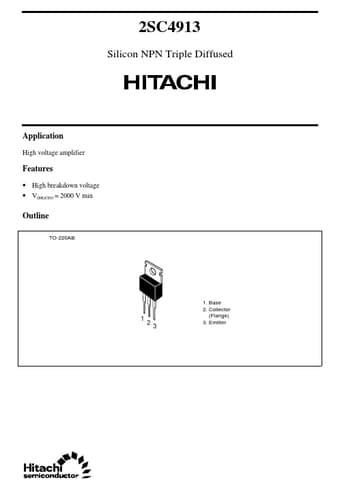

Preview of 2SC4913 PDF
datasheet Preview Page 2 datasheet Preview Page 3
