2SC4916 Datasheet - SavantIC

2SC4916 SILICON POWER TRANSISTOR

*With TO-3P(H)IS package *High speed ;high speed *Low saturation voltage *Bult-in damper diode APPLICATIONS *Horizontal deflection output for high resolution display,colorTV *High speed switching applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (.

2SC4916_SavantIC.pdf

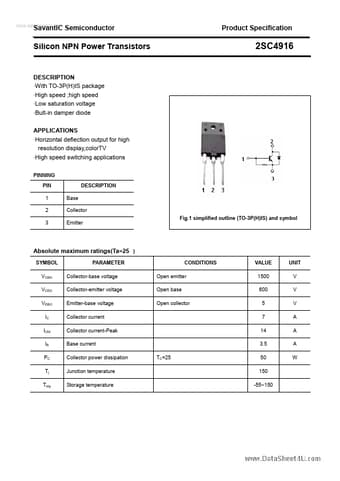

Preview of 2SC4916 PDF
2SC4916 Datasheet Preview Page 2 2SC4916 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC4916

Manufacturer:

SavantIC

File Size:

324.56 KB

Description:

Silicon power transistor.
