2SC5080 - NPN TRANSISTOR

Product Overview

Hitachi Semiconductor

Part number	2SC5080
Manufacturer	Hitachi Semiconductor
File Size	48.57 KB
Description	NPN TRANSISTOR
Datasheet	2SC5080 Datasheet

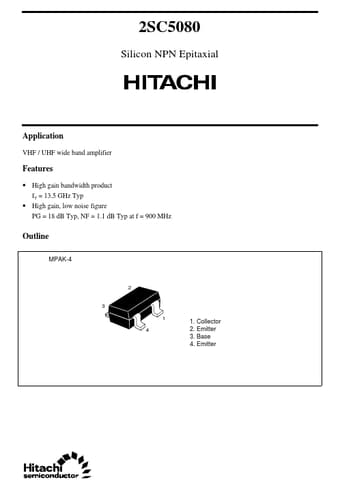

Additional preview pages of the 2SC5080 datasheet.

High gain bandwidth product fT = 13.5 GHz Typ.
High gain, low noise figure PG = 18 dB Typ, NF = 1.1 dB Typ at f = 900 MHz Outline MPAK-4 2 3 1 4 1. Collector 2. Emitter 3. Base 4. Emitter 2SC5080 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 15 8 1.5 50 150 150.
