2SC5088 Datasheet - Toshiba Semiconductor

2SC5088 NPN TRANSISTOR

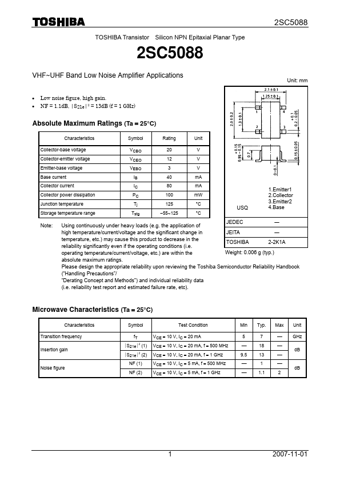

2SC5088 TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC5088 VHF~UHF Band Low Noise Amplifier Applications Low noise figure, high gain. NF = 1.1dB, |S21e|2 = 13dB (f = 1 GHz) Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Base current Collector current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IB IC PC Tj Tstg Rating 20 12 3 40 .

2SC5088_ToshibaSemiconductor.pdf
