2SD1420 Silicon NPN Transistor

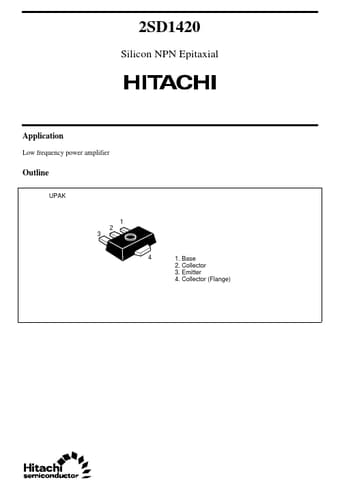

2SD1420 Silicon NPN Epitaxial Application Low frequency power amplifier Outline UPAK 1 3 2 4 1. Base 2. Collector 3. Emitter 4. Collector (Flange) 2SD1420 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg 2 1 Ratings 180 120 5 1.5 3 1 150 55 to +1.
