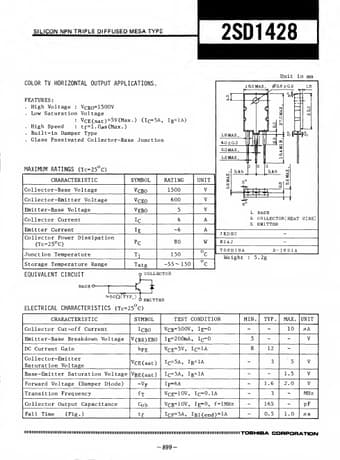

SILICON NPN TRIPLE DIFFUSED MESA TYPE
COLOR TV HORIZONTAL OUTPUT APPLICATIONS.
FEATURES
. High Voltage : VcBO=1500V . Low Saturation Voltage
. High Speed
: V C E(sat)=5V(Max.) (I C=5A, I B=1A) : tf=l. 0/«s(Max.
. Built-in Damper Type
. Glass Passivated Collector-Base Junction
Unit in mm 1&0MAX. 03.6±Q2
MAXIMUM RATINGS (Tc=25°C)
CHARACTERISTIC
SYMBOL RATING UNIT
Collector-Base Voltage
VcBO
1500
Collector-Emitter Voltage Emitter-Base Voltage
v CEO
600
VEBO
Collector Current
ic
Emitter Current
IE
-6
Collector Power Dissipation
(Tc=25°C)
80
Junction Temperature
150
Storage Temperature Range
[ stg
-55-150
EQUIVALENT CIRCUIT BASEO-
COLLECTOR
3
1
-y/»
^50Q(TYP. ) EMITTER
ELECTRICAL CHARACTERISTICS (Tc=25°C)
1. BASE 2. COLLECTOR (HEAT SINK) 3.
2SD1428 Datasheet
