Part number:
2SD1425
Manufacturer:
File Size:
103.44 KB
Description:
Silicon npn transistor.

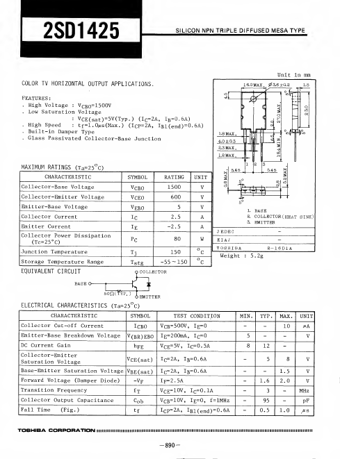

* . High Voltage : VCBO=1500V . Low Saturation Voltage : VCE(sat)=5V(Typ.) (I C=2A, IB=0.6A) . High Speed : tf =1. 0/is(Max. ) (IcP=2A, lBl(end)=0.6A) . Built-in Damper Type . Glass Passivated Collector-Base Junction Unit in mm 1&0MAX. 03.6x0.2 MAXIMUM RATINGS (T a=25°C) CHARACTERISTIC Collector-Bas
2SD1425
103.44 KB
Silicon npn transistor.
