2SD1869 Silicon NPN Epitaxial Type Transistor

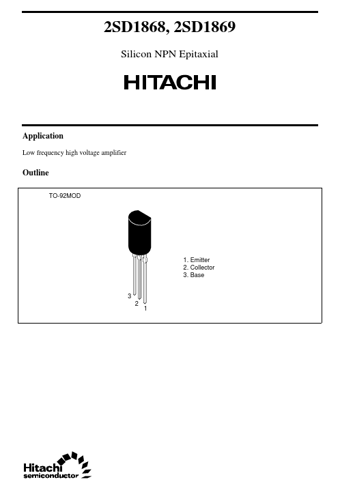

2SD1868, 2SD1869 Silicon NPN Epitaxial Application Low frequency high voltage amplifier Outline TO-92MOD 1. Emitter 2. Collector 3. Base 3 2 1 2SD1868, 2SD1869 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg 2SA1868 160 160 5 100 0.9 150 55 to +150 2SA1869 200 200 5 100 0.9 150 55 .
