2SD1115 Datasheet - Hitachi Semiconductor

2SD1115 Silicon NPN Transistor

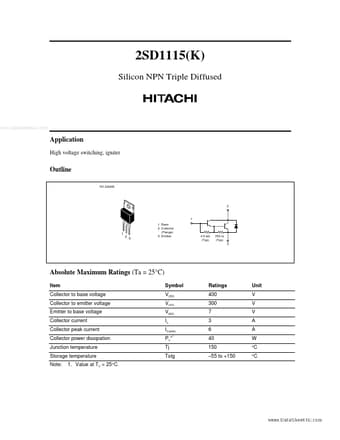

2SD1115(K) Silicon NPN Triple Diffused www.DataSheet4U.com Application High voltage switching, igniter Outline TO-220AB 2 1 1. Base 2. Collector (Flange) 3. Emitter 1 2 3 4.5 kΩ (Typ) 250 Ω (Typ) 3 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Symbol VCBO VCEO VEBO IC IC(peak.

2SD1115_HitachiSemiconductor.pdf

Preview of 2SD1115 PDF
2SD1115 Datasheet Preview Page 2 2SD1115 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1115

Manufacturer:

Hitachi Semiconductor

File Size:

57.95 KB

Description:

Silicon npn transistor.
