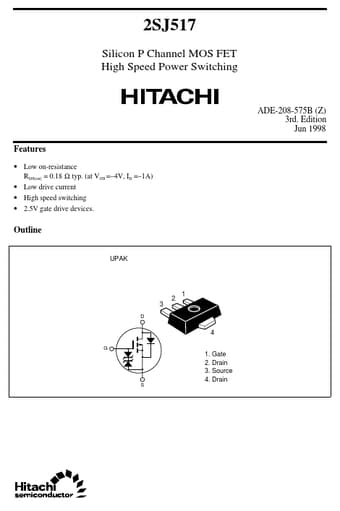

2SJ517 Datasheet, Mosfet, Hitachi Semiconductor

2SJ517 Features

• Mosfet
• Low on-resistance R DS(on) = 0.18 Ω typ. (at V GS =
    –4V, ID =
    –1A)
• Low drive current
• High speed switching
• 2.5V gate

PDF File Details

Part number:

2SJ517

Manufacturer:

Hitachi Semiconductor

File Size:

43.88kb

Download:

📄 Datasheet

Description:

Silicon p-channel mosfet.
