2SJ540 - Silicon P-Channel MOSFET

Hitachi Semiconductor

📥 Download Datasheet

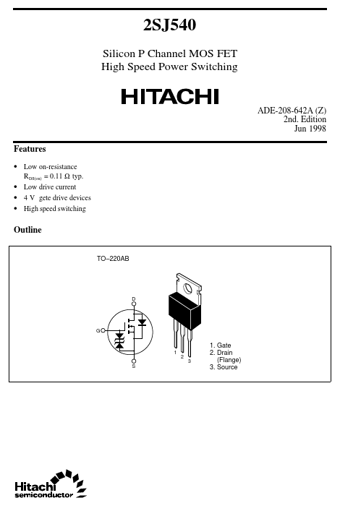

2SJ540 Datasheet Preview — Preview of 2SJ540 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SJ540
Manufacturer	Hitachi Semiconductor
File Size	53.89 KB
Description	Silicon P-Channel MOSFET
Datasheet	2SJ540_HitachiSemiconductor.pdf

2SJ540 Product details

Features

Low on-resistance R DS(on) = 0.11 Ω typ.
Low drive current.
4 V gete drive devices.
High speed switching Outline TO.
220AB D G 1 2 S 3 1. Gate 2. Drain (Flange) 3. Source 2SJ540 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Symbol VDSS VGSS ID I D(pulse) Note1 Ratings.
60 ±20.
12.
48.
12 Unit V V A A A A mJ W °C °C Body-drain diode rev.
