2SJ552L - Silicon P-Channel MOSFET

Hitachi Semiconductor

📥 Download Datasheet

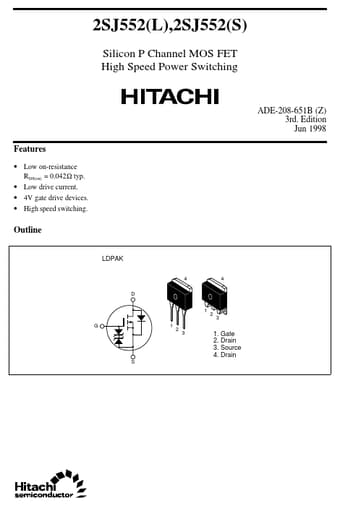

2SJ552L Datasheet Preview — Preview of 2SJ552L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SJ552L
Manufacturer	Hitachi Semiconductor
File Size	56.45 KB
Description	Silicon P-Channel MOSFET
Datasheet	2SJ552L_HitachiSemiconductor.pdf

2SJ552L Product details

Features

Low on-resistance R DS(on) = 0.042 Ω typ.
Low drive current.
4V gate drive devices.
High speed switching. Outline LDPAK 4 D 1 G 1 4 2 3 2 3 1. Gate 2. Drain 3. Source 4. Drain S 2SJ552(L),2SJ552(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Symbol VDSS VGSS ID I D(pulse) Note1 Ratings.
60 ±20.
20.
80.
20 Unit V V A A A A mJ W °C °C Body.
