2SK1254S - Silicon N-Channel MOSFET

Product Overview

Hitachi Semiconductor

Part number	2SK1254S
Manufacturer	Hitachi Semiconductor
File Size	48.31 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK1254S Datasheet

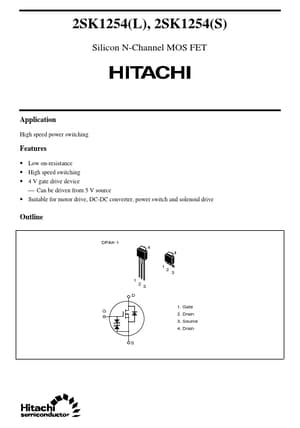

Additional preview pages of the 2SK1254S datasheet.

Low on-resistance.
High speed switching.
4 V gate drive device  Can be driven from 5 V source.
Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline DPAK-1 4 4 1 1 D G 1. Gate 2. Drain 3. Source 4. Drain S 2 3 2 3 2SK1254(L), 2SK1254(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channe.
