2SK1622S - Silicon N-Channel MOS FET

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

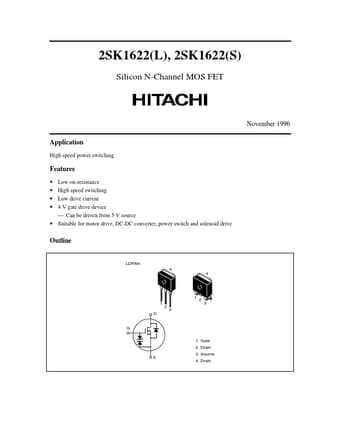

2SK1622S Silicon N-Channel MOS FET by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – 2SK1622S

Datasheet Details

Part number	2SK1622S
Manufacturer	Hitachi Semiconductor
File Size	27.27 KB
Description	Silicon N-Channel MOS FET
Datasheet	2SK1622S Datasheet
Note	This datasheet PDF includes multiple part numbers: 2SK1622S, 2SK1622. Please refer to the document for exact specifications by model.
Additional preview pages of the 2SK1622S datasheet.

Product details

Features

Low on-resistance.
High speed switching.
Low drive current.
4 V gate drive device  Can be driven from 5 V source.
Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline November 1996 LDPAK 4 4 123 D 12 3 G S 1. Gate 2. Drain 3. Source 4. Drain 2SK1622(L), 2SK1622(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode rever.
