2SK2059 - Silicon N-Channel MOSFET

Product Overview

Hitachi Semiconductor

Part number	2SK2059
Manufacturer	Hitachi Semiconductor
File Size	47.82 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK2059 Datasheet

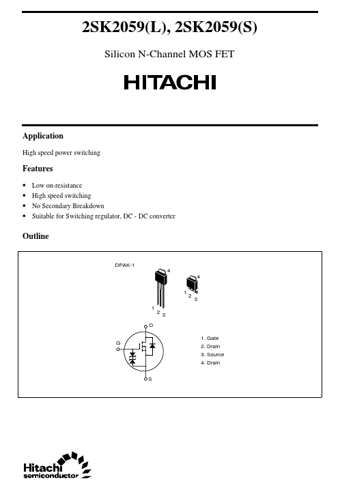

Additional preview pages of the 2SK2059 datasheet.

Low on-resistance High speed switching No Secondary Breakdown Suitable for Switching regulator, DC - DC converter Outline DPAK-1 4 4 1 1 D G 1. Gate 2. Drain 3. Source 4. Drain S 2 3 2 3 2SK2059(L), 2SK2059(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes 1. PW ≤ 10 µs,.
