2SK2052 - N-Channel MOSFET Transistor

Product Overview

📥 Download Datasheet

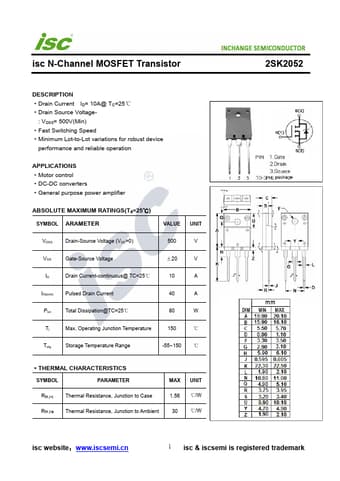

Datasheet preview – 2SK2052

Datasheet Details

Part number 2SK2052
Manufacturer Inchange Semiconductor
File Size 221.99 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK2052 Datasheet
Additional preview pages of the 2SK2052 datasheet.

Product details

Description

Drain Current ID= 10A@ TC=25℃ Drain Source Voltage- : VDSS= 500V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Motor control DC-DC converters General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 10 A ID(puls) Pulsed Drain Curre
