2SK2003-01M - N-Channel MOSFET Transistor

Product Overview

📥 Download Datasheet

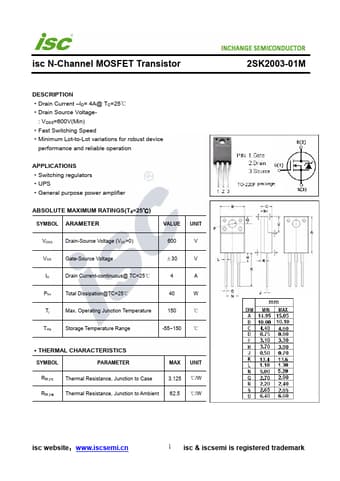

Datasheet preview – 2SK2003-01M

Datasheet Details

Part number 2SK2003-01M
Manufacturer Inchange Semiconductor
File Size 212.77 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK2003-01M Datasheet
Additional preview pages of the 2SK2003-01M datasheet.

Product details

Description

Drain Current ID= 4A@ TC=25℃ Drain Source Voltage- : VDSS=600V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching regulators UPS General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 4 A Ptot Total Dissipation@TC=2
