2SK2059L - Silicon N-Channel MOSFET

Datasheet Summary

Features

  • Low on-resistance High speed switching No Secondary Breakdown Suitable for Switching regulator, DC - DC converter Outline DPAK-1 4 4 1 1 D G 1. Gate 2. Drain 3. Source 4. Drain S 2 3 2 3 2SK2059(L), 2SK2059(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes 1. PW ≤ 10 µs,.

📥 Download Datasheet

Datasheet preview – 2SK2059L

Datasheet Details

Part number 2SK2059L
Manufacturer Hitachi Semiconductor
File Size 47.82 KB
Description Silicon N-Channel MOSFET
Datasheet download datasheet 2SK2059L Datasheet
Additional preview pages of the 2SK2059L datasheet.

📁 Similar Datasheet

  • 2SK2059S - Silicon N-Channel MOSFET (Kexin)
  • 2SK2050 - N-channel MOS-FET (Fuji Electric)
  • 2SK2050 - N-Channel MOSFET (INCHANGE)
  • 2SK2051-L - N-CHANNEL SILICON POWER MOSFET (Fuji Electric)
  • 2SK2051-S - N-CHANNEL SILICON POWER MOSFET (Fuji Electric)
  • 2SK2052 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK2052-R - Power MOSFET (Fuji Electric)
  • 2SK2053 - N-Channel MOSFET (NEC)
  • 2SK2054 - N-Channel MOSFET (NEC)
  • 2SK2055 - N-Channel MOSFET (NEC)
Other Datasheets by Hitachi Semiconductor

Full PDF Text Transcription

Click to expand full text

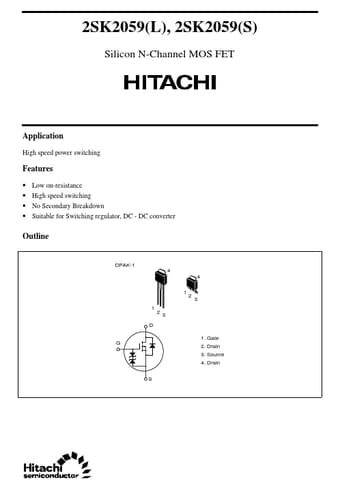

2SK2059(L), 2SK2059(S) Silicon N-Channel MOS FET Application High speed power switching Features • • • • Low on-resistance High speed switching No Secondary Breakdown Suitable for Switching regulator, DC - DC converter Outline DPAK-1 4 4 1 1 D G 1. Gate 2. Drain 3. Source 4. Drain S 2 3 2 3 2SK2059(L), 2SK2059(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes 1. PW ≤ 10 µs, duty cycle ≤ 1 % 2.
