2SK2926

Silicon N Channel MOS FET

2SK2926 Features

* Low on-resistance R DS(on) = 0.042Ω typ.

* 4V gate drive devices.

* High speed switching Outline DPAK

* 2 4 4 D 1 2 G 3 S 1 2 3 1. Gate 2. Drain 3. Source 4. Drain 2SK2926(L), 2SK2926(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate t

2SK2926 Datasheet (53.16 KB)

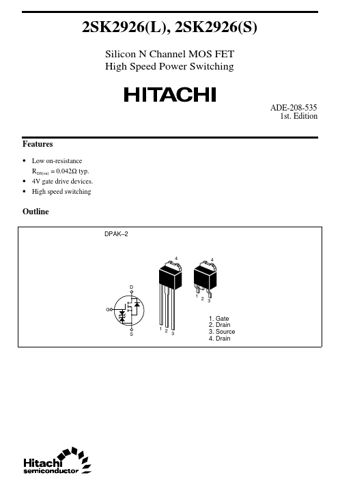

Preview of 2SK2926 PDF

Datasheet Details

Part number:

2SK2926

Manufacturer:

Hitachi Semiconductor

File Size:

53.16 KB

Description:

Silicon n channel mos fet.
