2SK2920 Datasheet - Toshiba Semiconductor

2SK2920, Silicon N-Channel MOS Type Field Effect Transistor

2SK2920 TOSHIBA Field Effect Transistor Silicon N-Channel MOS Type (π *MOSV) 2SK2920 Chopper Regulator, DC/DC Converter and Motor Drive Applic.

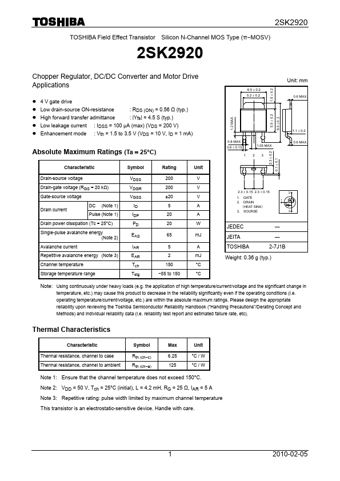

datasheet Preview Page 1 from Datasheet4u.com

2SK2920_ToshibaSemiconductor.pdf

2SK2920 Datasheet Preview — Preview of 2SK2920 PDF

Datasheet Details

Part number:

2SK2920

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

385.90 KB

Description:

Silicon N-Channel MOS Type Field Effect Transistor

Features

* for details as to environmental matters such as the RoHS compatibility of Product. Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitati

Applications

* z 4 V gate drive z Low drain-source ON-resistance : RDS (ON) = 0.56 Ω (typ. ) z High forward transfer admittance : |Yfs| = 4.5 S (typ. ) z Low leakage current : IDSS = 100 μA (max) (VDS = 200 V) z Enhancement mode : Vth = 1.5 to 3.5 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C
