B1012 Datasheet - Hitachi Semiconductor

B1012 2SB1012

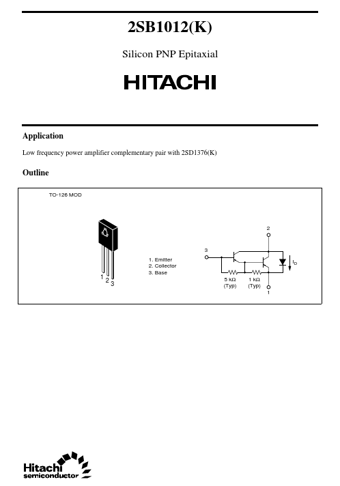

2SB1012(K) Silicon PNP Epitaxial Application Low frequency power amplifier complementary pair with 2SD1376(K) Outline TO-126 MOD 2 3 1. Emitter 2. Collector 3. Base ID 5 kΩ (Typ) 1 kΩ (Typ) 1 1 2 3 http://www.Datasheet4U.com 2SB1012(K) Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature C to E diode forward cur.

B1012-HitachiSemiconductor.pdf
