B1018

2SB1018

B1018 General Description


*With TO-220Fa package
*Low saturation voltage
*Complement to type 2SD1411 APPLICATIONS
*High current switching applications
*Power amplifier applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol DESCRIPTION Absolute maximum ratings.

B1018 Datasheet (183.21 KB)

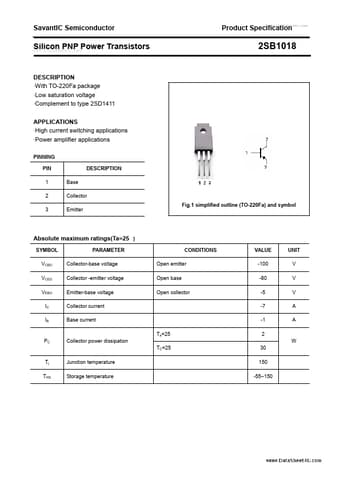

Preview of B1018 PDF

Datasheet Details

Part number:

B1018

Manufacturer:

SavantIC

File Size:

183.21 KB

Description:

2sb1018.
