B1064 Datasheet - SavantIC

B1064-SavantIC.pdf

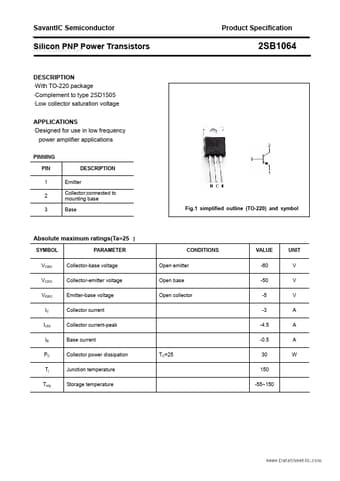

Preview of B1064 PDF
B1064 Datasheet Preview Page 2 B1064 Datasheet Preview Page 3

Datasheet Details

Part number:

B1064

Manufacturer:

SavantIC

File Size:

116.68 KB

Description:

Silicon power transistor.

B1064, SILICON POWER TRANSISTOR

*With TO-220 package *Complement to type 2SD1505 *Low collector saturation voltage APPLICATIONS *Designed for use in low frequency power amplifier applications PINNING PIN DESCRIPTION 1 Emitter 2 Collector;connected to mounting base 3 Base Product Specification 2SB1064 Fig.
