B1024 Datasheet - SavantIC

B1024 2SB1024

*With TO-220Fa package *High DC current gain *Low saturation voltage *Complement to type 2SD1414 APPLICATIONS *Power amplifier and switching applications *Hammer drive,pulse motor drive applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) .

B1024_SavantIC.pdf

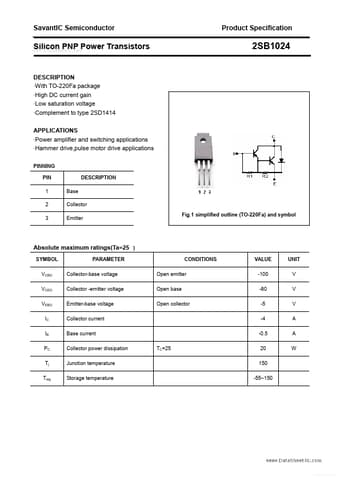

Preview of B1024 PDF
B1024 Datasheet Preview Page 2 B1024 Datasheet Preview Page 3

Datasheet Details

Part number:

B1024

Manufacturer:

SavantIC

File Size:

173.36 KB

Description:

2sb1024.
