B1022 Datasheet - SavantIC

B1022 2SB1022

*With TO-220Fa package *High DC current gain *Low saturation voltage *Complement to type 2SD1417 APPLICATIONS *High power switching applications *Hammer drive,pulse motor drive applications PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Product Specification 2SB1022.

B1022-SavantIC.pdf

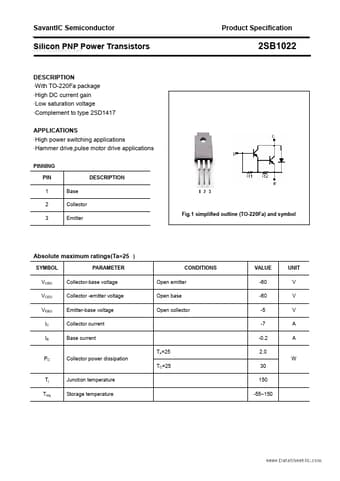

Preview of B1022 PDF
B1022 Datasheet Preview Page 2 B1022 Datasheet Preview Page 3

Datasheet Details

Part number:

B1022

Manufacturer:

SavantIC

File Size:

152.22 KB

Description:

2sb1022.
